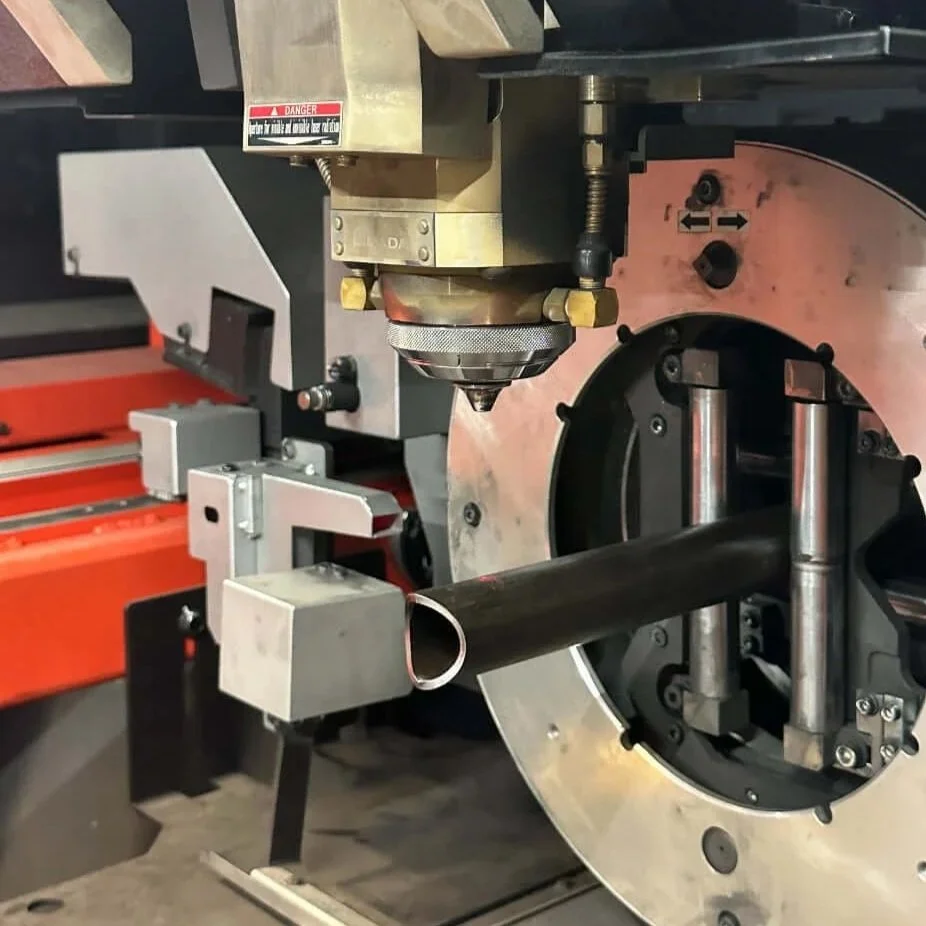

The rotary-index tube laser allows precision cutting, complex profiles, repeatability which reduces fabrication time.

tube profile

Frames, supports, railings, canopies, trusses, architectural features, and welded assemblies.

complex cuts

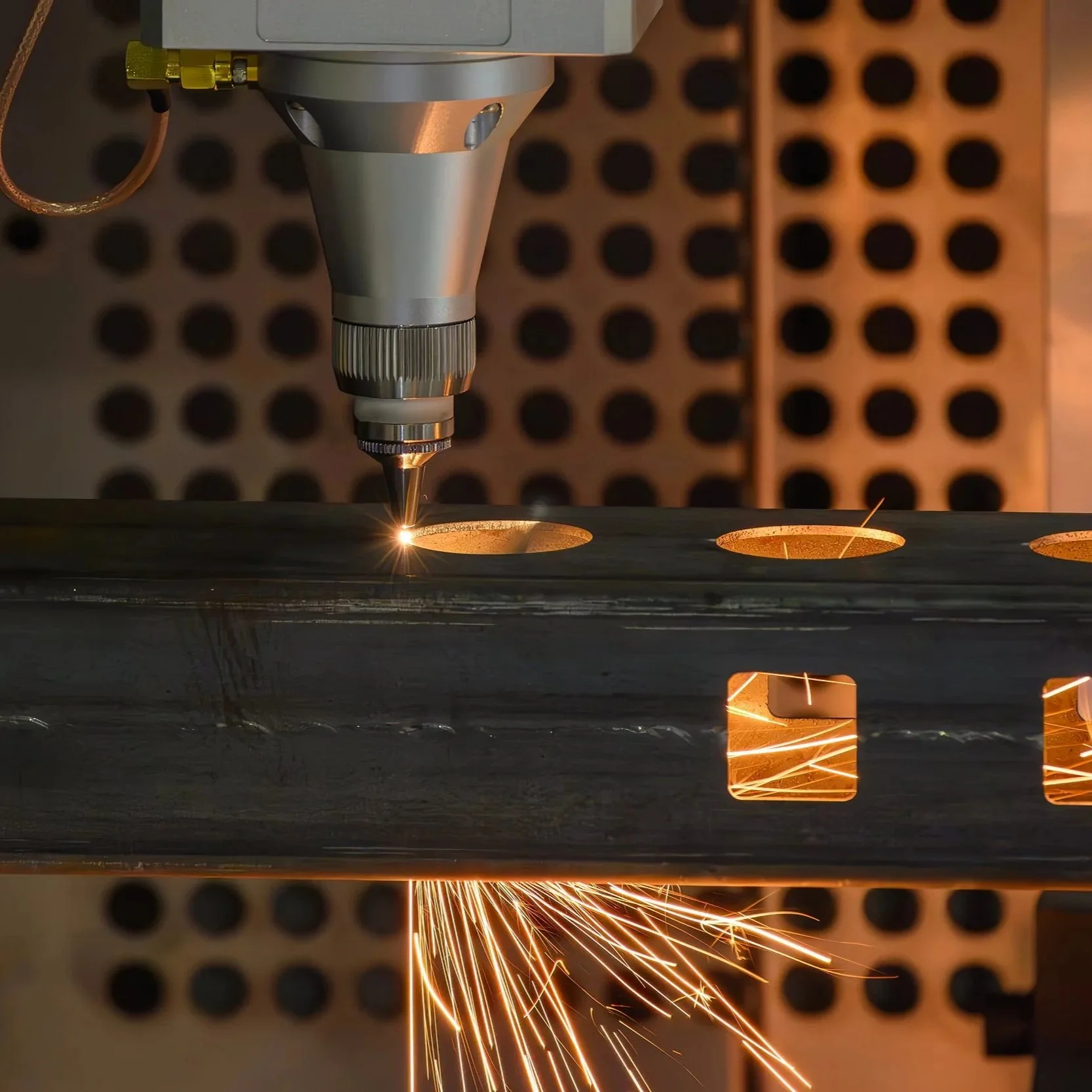

Holes, slots, copes, notches, miters, and connection details cut directly into the material for faster, more accurate assembly.

repetition

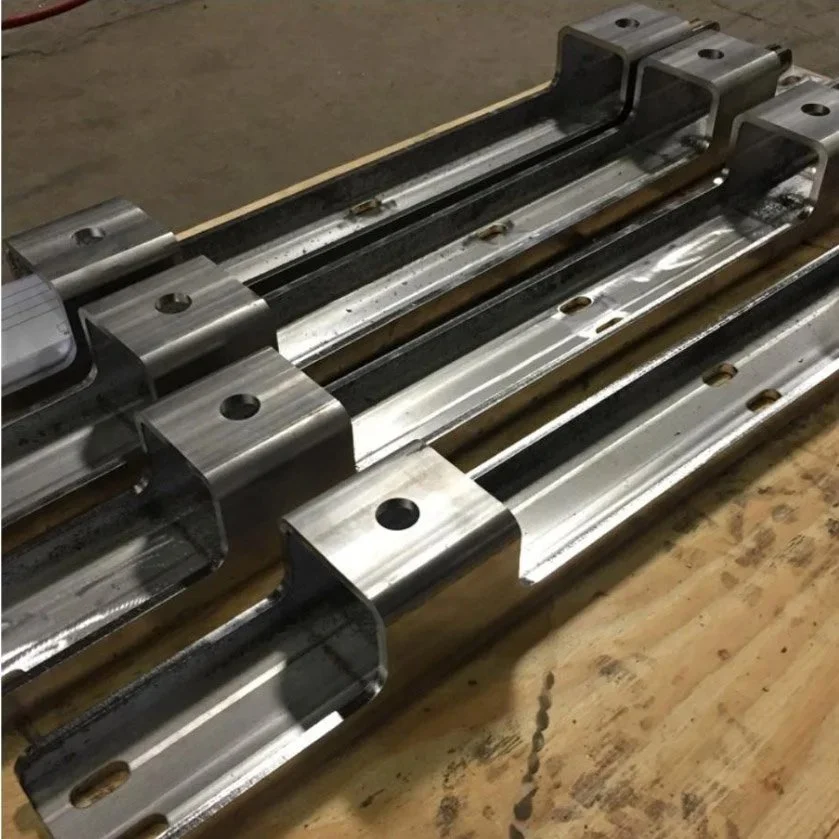

Complex profiles, equipment components, OEM parts, and repeatable production runs created directly from digital models.



The FO-M23015RI rotary index laser is excellent for a variety of architectural and structural applications that involve cutting and fabricating tubular or structural metal components. Here are a few jobs where this machine could benefit contractors, designers, and fabricators:

1. Architectural Metalwork & Interiors

  • Handrails & Guardrails – Precision-cut tubing for custom stair railings, balconies, and ADA-compliant handrails.

  • Decorative Screens & Panels – Laser-cut designs in sheet metal or tube structures for facades and interior partitions.

  • Canopies & Pergolas – Custom brackets and connection components for architectural shade structures.

  • Sculptural Installations – Complex 3D shapes and perforated designs for artistic metalwork.

2. Structural & Industrial Fabrication

  • Steel Frames & Supports – Cutting and notching steel tubing for architectural and industrial frame assemblies.

  • Signage & Wayfinding – Custom metal signage with intricate cutouts and mounting brackets.

  • Equipment Racks & Enclosures – Fabrication of metal casings and protective cages for machinery.

  • Custom Brackets & Mounts – Precision-cut components for HVAC, electrical, and mechanical support systems.

3. Custom Furniture & Fixtures

  • Metal Tables & Shelving – Structural tubing and frame components for commercial and residential furniture.

  • Retail & Hospitality Displays – High-precision custom shelving, signage stands, and retail fixtures.

  • Lighting Structures – Custom-cut tube and frame assemblies for modern lighting installations.

4. Specialty Construction & Custom Fabrication

  • Public Infrastructure Elements – Precision-cut handrails, bike racks, bollards, and bus stop shelters.

  • Bridges & Walkways – Structural metal elements for pedestrian bridges and footbridges.

  • Stair Stringers & Balustrades – Custom-fabricated stair components, including tube-cut stringers and support posts.

  • Vehicle & Trailer Frames – Custom metal components for transport and industrial trailers.

Our Cutting Equipment

Amada FO-M2 3015RI Rotary Index Laser
Integrated sheet and plate cutting capabilities

    • Steel:

      • Thickness: 18 gauge (0.047") to 1/2"

      • Dimensions: Round tube (3/8" to 9"), Square tube (3/8" to 6"), Rectangular and angles (fit within a 9" diameter circle)

      Stainless Steel:

      • Thickness: 18 gauge (0.047") to 1/4"

      • Dimensions: Same as steel

      Aluminum:

      • Thickness: 0.050" to 0.250"

      • Dimensions: Same as steel

    • Maximum material length: approximately 20 feet

  • Precision-cut connections reduce layout, drilling, grinding, and fit-up time; helping projects move more efficiently from fabrication through installation.
