At Johnson Metal Works, we utilize laser scanning services to capture precise field measurements and create highly accurate 3D as-built models.

With highly precise field measurements, our laser-cut components are designed to fit perfectly the first time, eliminating costly rework and installation delays. By integrating laser scanning data into our fabrication process, we ensure each piece is built to the exact specifications of the project site.

Our on-site laser scanning services improve project efficiency, reduce costly mistakes, and provide real-world data for design and fabrication.




How We Use Laser Scanning in the Field

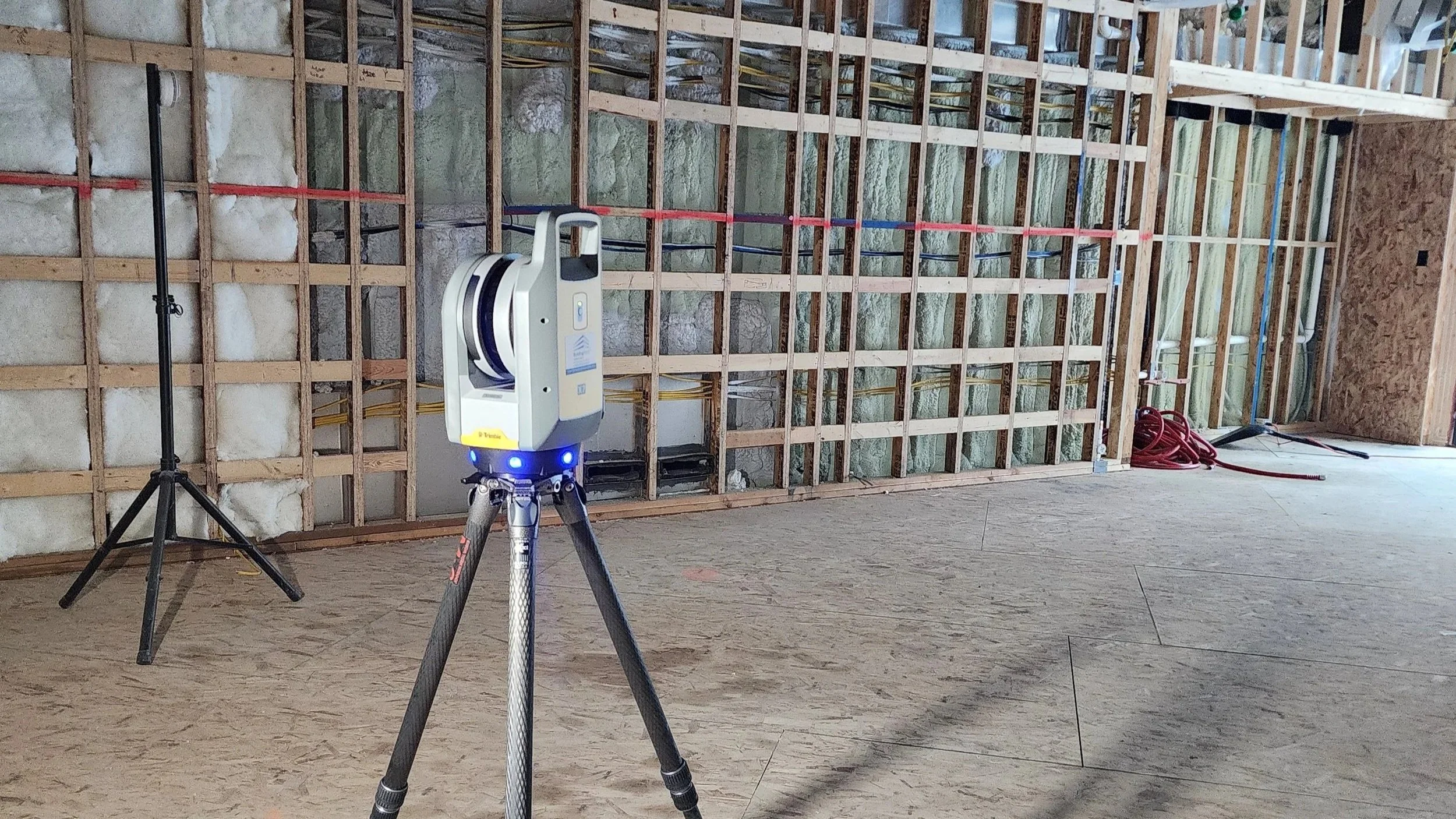

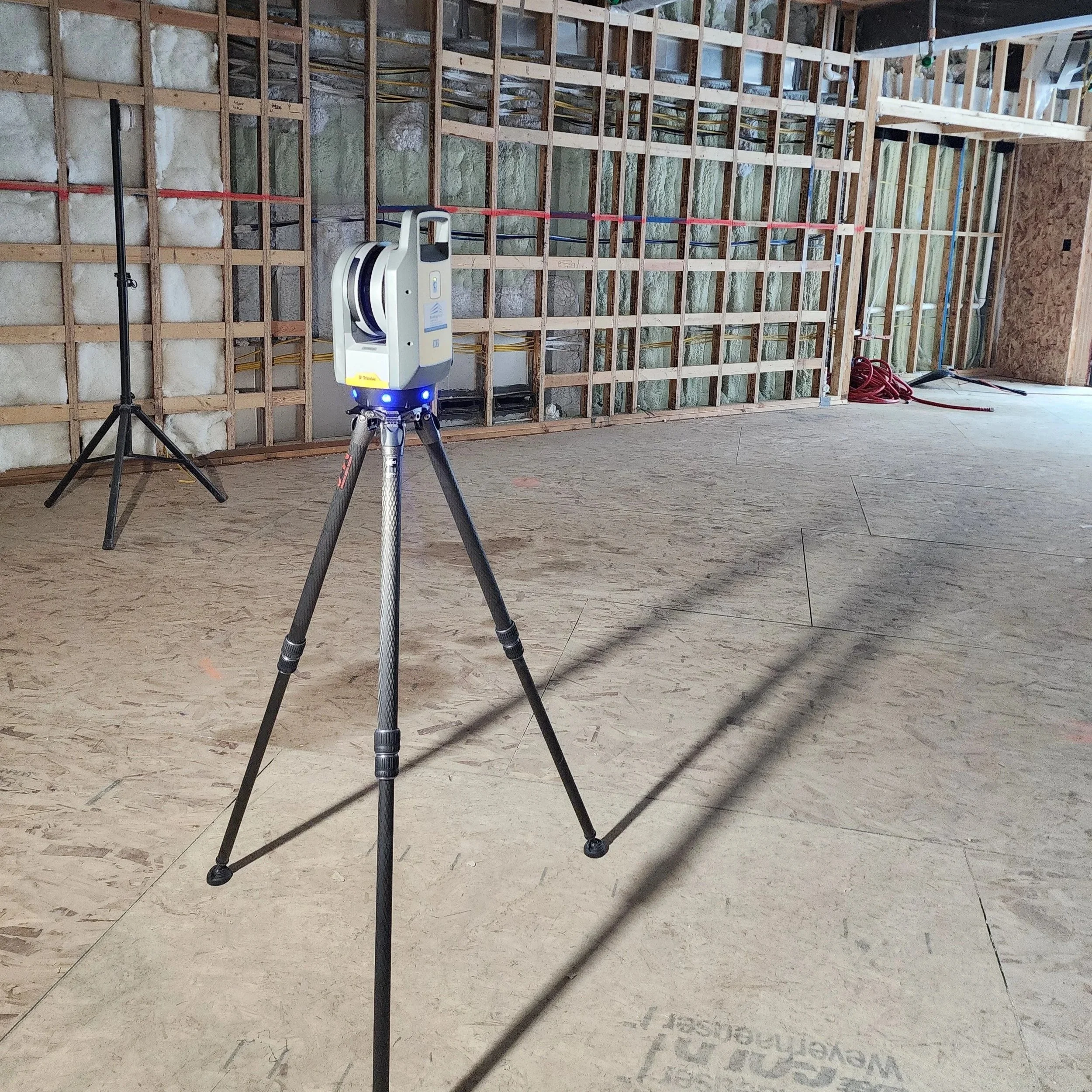

Accuracy starts on-site. Our team uses high-resolution 3D laser scanners to map complex environments with sub-millimeter precision, ensuring flawless fabrication and installation.

🔹 Embed & Anchor Location Mapping

Before steel erection, we scan job sites to verify embed placements, ensuring accurate alignment with prefabricated structural elements.

🔹 Pre-Installation Verification

We scan work areas to ensure fabricated parts will fit exactly as designed, eliminating surprises during installation.

🔹 Construction Progress Tracking

Regular scanning throughout the project allows for real-time monitoring and progress validation.

    • High-Precision Data

    • Seamless Digital Integration –

    • Reduced Costs & Rework –

    • Comprehensive Documentation

  • Yes! We work with Architects, Engineers, and Contractors.


    3D Point Cloud to Revit Integration – Our scans can be converted into Revit-compatible models, allowing designers to start the project with accurate, real-world data.

    • Point cloud

    • Photogrammetry
